JFL


Laboratory jet dyeing apparatus type «JFL», multiple use HT dyeing apparatus.

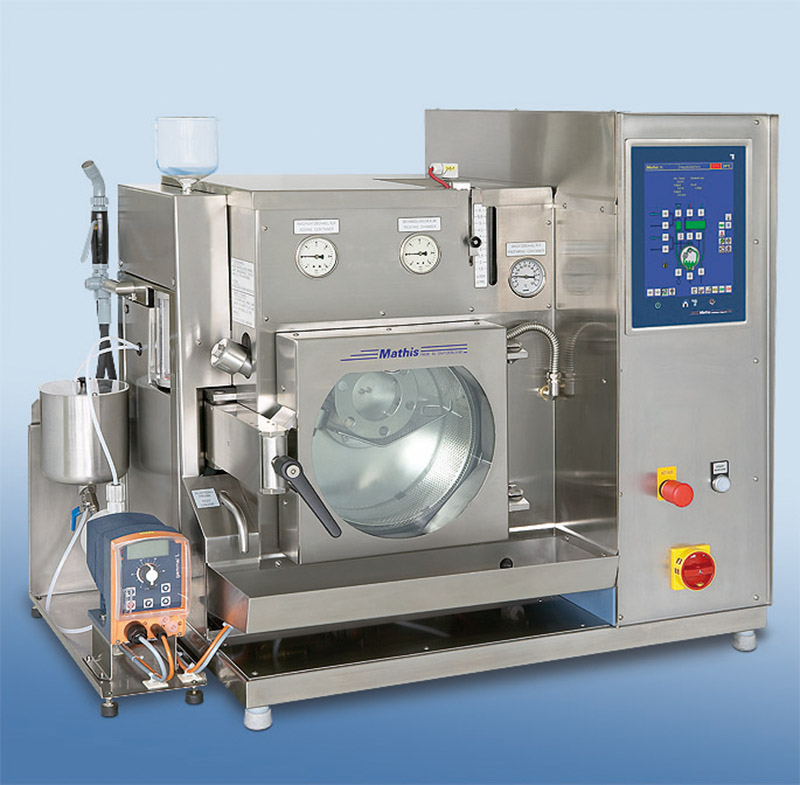

Laboratory jet dyeing system type JFL
Laboratory jet dyeing system type JFL

The JFL can be used for the following processes:
- Jet dyeing with different jet diameters
- HT-beaker dyeing with different volumes and quantities
- Treatment in the dyeing drum


- Jets with different jet diameters
- HT-beakers in 100 ml, 150 ml or 200 ml sizes
- Flow measurement
- Dosing device

Jet material content 40 – 100 g
Jet material speed 1 – 30 m/min
Temperature range 20 – 140 °C
Temperature gradient 0.3 – 4 °C/min
Liquor content 0.4 – 4 l
Jet liquor ratio approx. 1:5 and higher
Dyeing drum liquor ratio 1:1 to 1:50
Liquor circulation infinitely variable up to max. 15,000 l/h
Number of HT beakers 6 x 100 ml
3 x 150 ml
3 x 200 ml
Preparing container volume 6 l
Adding container volume 0.5 l
Operation Univision
Dimensions W x D x H 850 x 650 x 870 mm
Weight ~190 kg
